GDEF-L1NK is a modular network intelligence component of the GDEF Suite. It captures authorized network traffic, enriches observed endpoints, and visualizes live connections on an interactive 3D globe for defensive analysis, lab work, and internal security operations.

It is designed as a standalone module that can be run independently today and integrated into larger GDEF Suite workflows over time.

• Features
• Requirements
• Quick Start
  • Docker (Linux)
  • Windows
• Service Commands
  • Development (live code reload)
• Database (PostgreSQL)
• Multi-Device Monitoring (Sensors)
  • Dashboard overlay tabs
  • FritzDump module
• Security & Privacy
  • Security Environment Variables
• Python Workflow
• Configuration
• Project Structure
• Security Notice
• Troubleshooting
• Known Issues
• License
• Author

• Live packet visibility: Captures TCP, UDP, and ICMP traffic with Scapy.

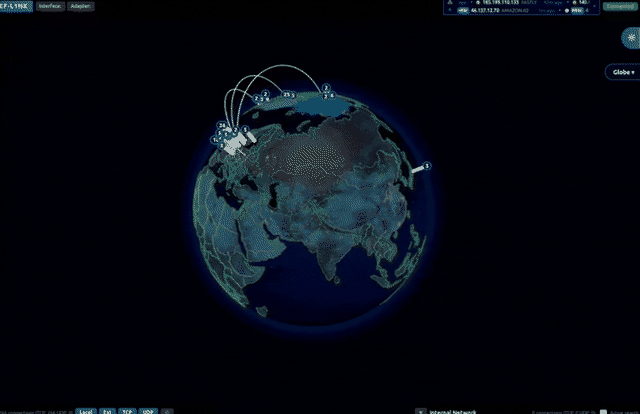

• 3D geo-visualization: Displays external connections on an interactive globe.
• Local network discovery: Detects local devices and mDNS activity.
• Threat enrichment: Uses FireHOL-style blocklist data for basic reputation context.
• Multi-device aggregation: Acts as a hub for remote sensors — each a named, coloured origin — with encrypted push ingestion and per-device statistics.
• Operational controls: Supports TCP/UDP filters, local/external toggles, pinned IPs, and live statistics.

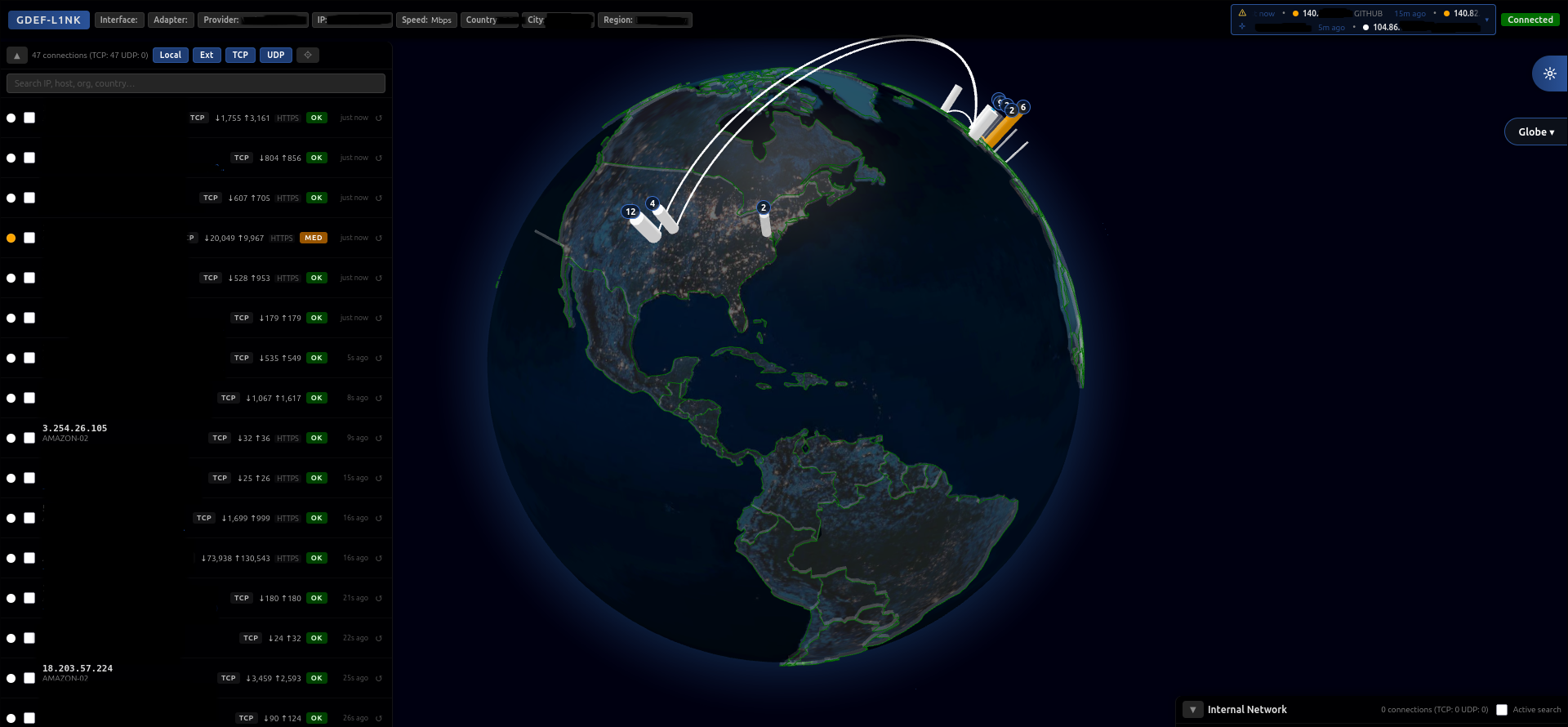

• Unified dashboard panel: A single tabbed overlay (Statistics · Connections · Devices · Settings) for all charts, the connection table, device management, and configuration — opened via the ⚙ (Settings) or 📊 (Statistics) buttons.
• Suite-ready structure: Keeps runtime configuration, datasets, scripts, and web assets separated for modular GDEF Suite integration.

• Python 3.11+
• uv recommended for Python dependency management
• Administrator/root privileges for packet capture
• Linux/macOS: libpcap/tcpdump packages where required by the platform
• Windows: Npcap or WinPcap

GDEF-L1NK is protected by a token-based login. The access token is generated on first start and stored securely in database/access_token.txt.

run.sh is a thin wrapper around Docker Compose: the sniffer/web app and a PostgreSQL database run as containers. The app container uses host networking plus the NET_RAW/NET_ADMIN capabilities so Scapy captures from the physical interface — no host-level setcap needed. Requires Docker Engine + the Compose plugin.

cp .env.example .env
# Edit .env: set NETWORK_INTERFACE (e.g. eth0/enp3s0) and a strong POSTGRES_PASSWORD
./run.sh start        # build (if needed) + start the stack

• Dashboard: http://localhost:8000
• Token: ./run.sh token (the app writes it into the mounted database/ folder; cat database/access_token.txt also works). Set a fixed ACCESS_TOKEN in .env to keep it stable across restarts.
• Data: PostgreSQL data persists in the pgdata named volume; the GeoIP .mmdb datasets and generated secrets stay in the mounted database/ folder.

The database port is published to 127.0.0.1 only (default 55432, to avoid a system PostgreSQL on 5432), so it is never exposed to the LAN. Set APP_HOST=0.0.0.0 in .env only if you intentionally want the UI reachable from other hosts. If your user isn't in the docker group, prefix the commands with sudo.

1. Install Npcap: Download and install from npcap.com. Select "Install Npcap with WinPcap API-compatible Mode".
2. Run Launcher: Right-click start.bat and select "Run as Administrator".
   • The script will automatically harden the database/ folder permissions (only you and Administrators will have access).
   • It will synchronize dependencies using uv (or pip fallback).
3. Access Dashboard: Open http://localhost:8000.
4. Login: Find your access token in database/access_token.txt.

run.sh drives the Docker Compose stack:

./run.sh start      # build (if needed) + start app + PostgreSQL (baked image)
./run.sh dev        # start with source bind-mounted (live frontend, fast backend reload)
./run.sh stop       # stop and remove the containers
./run.sh restart    # rebuild changed parts (frontend/backend) + restart — picks up code edits
./run.sh status     # container status (docker compose ps)
./run.sh logs       # follow the app logs
./run.sh build      # (re)build the app image
./run.sh rebuild    # rebuild from scratch and start
./run.sh token      # print the dashboard access token

./run.sh dev starts the same stack but bind-mounts the source (app.py, db.py, static/, templates/) into the app container via docker-compose.dev.yml, so edits don't need an image rebuild:

• Frontend (static/, templates/): visible immediately on a browser refresh — no restart.
• Backend (app.py, db.py): run ./run.sh restart for a fast process restart (no image build).

Dev mode is remembered via a .dev-mode marker file, so restart/logs/status keep the mounts. Switch back to the production-like baked image with ./run.sh start (or leave dev mode entirely with ./run.sh stop).

Prefix with sudo if your user isn't in the docker group. Capture works via the container's NET_RAW/NET_ADMIN capabilities, so no host setcap is required (and setcap is in any case ignored on nosuid/ecryptfs mounts).

GDEF-L1NK stores its live IP table, pinned IPs, MAC-vendor cache, settings, and threat list in PostgreSQL (replacing the former embedded SQLite database). The GeoIP .mmdb datasets in database/datasets/ remain file-based and are unaffected.

With the Docker stack the db service provides PostgreSQL automatically — nothing to install. It is published to 127.0.0.1 only, on port 55432 by default (set via POSTGRES_PORT in .env) to avoid clashing with a system PostgreSQL on 5432.

To run the app outside Docker against your own PostgreSQL, configure the connection via these environment variables:

The app waits for PostgreSQL to accept connections on startup and creates its schema automatically (init_db).

No default DB password. Earlier versions fell back to a hardcoded constant password when PGPASSWORD was unset. That fallback is gone: a credential baked into source is no secret and becomes a real risk the moment PostgreSQL is reachable off-loopback. The app now fails fast with a clear error instead, and docker compose up aborts until POSTGRES_PASSWORD is set in .env. The Docker stack passes the value through DATABASE_URL, so set it once in .env and both the db container and the app pick it up.

GDEF-L1NK can act as a central hub that aggregates traffic from several capture devices at once — your local host plus any number of remote sensors. Each device is its own named, coloured origin on the globe, so you can see at a glance which connections belong to which machine.

• Register a device: in the dashboard sidebar, Devices → + Add device. The hub issues a DEVICE_ID and a one-time DEVICE_KEY (shown once).
• Install the sensor on the target server: see sensor/README.md. The sensor captures locally and pushes connections to the hub, gzip-compressed and Fernet-encrypted with the device key — confidential and replay-protected even over plain HTTP on a LAN. It carries no database and no datasets.
• Colour & filter: toggle globe colouring between threat and device, show/hide individual devices, and scope the statistics panel to one device or all. Filters and device settings persist across page reloads.
• Start / Stop (every device): each device row has a ▶ Start / ■ Stop button (its enabled flag). While a device is stopped, none of its traffic is processed — not even in the background — and it disappears from the globe and all lists. Starting it again immediately re-fetches and redraws its data. Even the built-in local capture can be stopped.

Devices are identified by their DEVICE_ID, never by IP — so several sensors behind the same home router (one shared public IP) stay distinct. The hub's own capture is the built-in local device; its display name comes from HUB_DEVICE_NAME (defaults to the hostname).

The hub exposes POST /api/ingest for sensors (per-device key auth, rate-limited, size-capped) and a session-authenticated device API (/api/devices…). Ingestion limits are tunable via INGEST_MAX_AGE, INGEST_MAX_EVENTS, INGEST_MAX_BODY and INGEST_RATE_LIMIT.

Open the dashboard overlay with the ⚙ Settings button or the 📊 Statistics button. It has four tabs:

• Statistics: live counters, protocol/threat charts, top talkers, newest connections, unknown IPs, and suspicious targets. Use the Device selector in the header to view all traffic or only one device.
• Connections: sortable connection table with IP, LAN device(s), country, organisation, protocol, packet counts, threat level, and last-seen time. The same Device selector scopes the table.
• Devices: enable, stop, rename, colour, filter, add, rotate, or delete capture devices.
• Settings: display options, organisation lists, IP labels, CSV export, and logout.

In the Devices tab, each row has two different controls:

• The checkbox at the left only shows/hides that device on the globe and in the lists. It is a display filter.
• ▶ Start / ■ Stop controls whether the hub processes that device's traffic. Stopped devices are not processed in the background and disappear from the live views.

Common device rows:

• local / your hub device: this is the hub's own network adapter capture. The adapter is selected with NETWORK_INTERFACE in the root .env or database/backend_conf.json. Start it to capture from that adapter; stop it if you only want sensor/FritzDump traffic.
• FritzBox / module: this is the FritzDump pcap source. It appears only after the module is enabled. Configure modules/FritzDump/.env, then open Devices and press ▶ Start on the FritzBox row. Start launches the FritzDump worker and begins tailing modules/FritzDump/dumps/; Stop kills the worker and clears its current data.
• sensor devices: remote hosts registered with + Add device. Start/Stop accepts or rejects their encrypted ingest batches.

Besides live capture from a NIC, the hub can use the FritzDump module as a capture source: instead of sniffing an interface, it captures from your FRITZ!Box and feeds that traffic into the same globe/stats as everything else. This lets a hub with no usable capture interface (or no CAP_NET_RAW) still see real traffic — and gives you full visibility of every device behind the router, not just the host the hub runs on.

How it works:

FRITZ!Box ──(login + capture)──> modules/FritzDump/run.sh ──> dumps/*.pcap
                                                                   │ tail
   dashboard  <── globe/stats <── process_packets <── hub reader ──┘

1. You press ▶ Start on the FritzBox device in the dashboard.
2. The hub launches the FritzDump worker (modules/FritzDump/run.sh), which logs into the box and streams its capture to pcap files under modules/FritzDump/dumps/.
3. The hub tails those pcaps and parses each packet (it understands both standard libpcap and the FRITZ!Box "modified" pcap variant, magic 0xa1b2cd34), tagging every connection as the FritzBox device.
4. Geo/threat/vendor enrichment happens centrally, exactly like live capture, and the connections appear on the globe and in the stats.

Because the FRITZ!Box sees the whole LAN, each external connection also records its local peer(s) — which device(s) in your network are talking to that external IP. A single external server is often reached by several local hosts at once (e.g. 192.168.178.100, .90, .44), so the dashboard collects all of them. The LAN device(s) appear:

• inline under each row in the live connection list (→ 192.168.178.100, …),
• as "LAN device(s)" in a point's detail panel, and
• as a sortable "LAN device(s)" column in the Connections tab.

You can give your own hosts friendly names under Settings → IP Labels (one IP Name per line, e.g. 192.168.178.100 PC-E1). Names are stored as a simple JSON map (database/ip_labels.json) and shown as PC-E1 (192.168.178.100) everywhere a LAN device is listed.

Stop kills the worker and clears its data. The module is just another device, so it honours the same per-device colour, visibility, and Start/Stop as any sensor.

The module is OFF by default — if you don't use it, you never see the device and nothing extra runs. Turn it on (Docker):

./run.sh fritzdump on      # bind-mounts the module, enables it, and recreates the app container
./run.sh fritzdump off     # turn it back off any time (also applies immediately)

fritzdump on/off recreates the app container itself (a plain restart wouldn't pick up the new mount/env). Outside Docker, just set FRITZDUMP_ENABLED=1.

Before you press Start, put the FRITZ!Box login data into the module's own env file. This is not the root project .env; FritzDump reads:

modules/FritzDump/.env

The module has its own detailed README here: modules/FritzDump/README.md.

Create it from the template and restrict the permissions:

cd modules/FritzDump
cp .env.example .env
chmod 600 .env

Then edit modules/FritzDump/.env:

FRITZ_HOST=192.168.178.1
FRITZ_USER=fritz-capture-user
FRITZ_PW=your-fritzbox-password
FRITZ_HTTPS=true

# Recommended when FRITZ_HTTPS=true: pin the FRITZ!Box certificate.
# FRITZ_CACERT=fritzbox.pem

Use a dedicated FRITZ!Box user if possible. It only needs the "FRITZ!Box settings" permission. If your box uses password-only login without a username, set FRITZ_USER=dslf-config.

You can test the credentials and list the available capture interfaces directly:

cd modules/FritzDump
./run.sh test

Once configured and enabled, the FritzBox device appears in the dashboard:

• FritzDump appears in Devices as a built-in module device with its own colour. It starts stopped; press its ▶ Start button.
• Start launches the capture worker for you. Pressing Start runs the FritzDump worker (modules/FritzDump/run.sh, which logs into the box and writes the pcaps) as a managed child process, then tails the resulting pcaps live. Stop kills that worker. You only need to configure modules/FritzDump/.env once.
• New packets are picked up within ~1 s; the home mode's per-interface sub-directories are discovered automatically. FritzDump has no public IP, so its globe arcs anchor at the hub's own location.
• If the worker exits immediately (usually a missing/wrong .env), the hub backs off and logs it instead of respawn-looping.

No data after Start? Check, in order:

• ./run.sh logs — the reader logs FritzDump status: N capture file(s), M packet(s) parsed every ~20 s. N=0 → the worker isn't writing pcaps; N>0, M=0 → files exist but aren't being parsed.
• cat database/fritzdump_worker.log — the worker's own stdout/stderr. Login failures, wrong interface IDs, or no route to the box show up here.
• Confirm modules/FritzDump/.env has the right host/credentials, and that the interface IDs in modules/FritzDump/run.sh (home mode) match your box.

Tune it with FRITZDUMP_DIR (watched dir), FRITZDUMP_DEVICE_NAME, FRITZDUMP_WORKER_MODE (home by default), or replace the launch command entirely with FRITZDUMP_WORKER_CMD. Set FRITZDUMP_AUTOSTART=0 if you prefer to run FritzDump yourself and have the hub only read the pcaps.

Docker: ./run.sh fritzdump on already bind-mounts modules/FritzDump into the container (so Start can launch the worker) and the base stack uses host networking (so the worker reaches the box). The module is not baked into the image — it is mounted only while enabled. If you'd rather run FritzDump on the host, set FRITZDUMP_AUTOSTART=0 and have the hub only read the pcaps via a mounted dumps directory (or point FRITZDUMP_DIR at the mount).

GDEF-L1NK is built with a Security-First approach:

• Authentication: Mandatory token-based login (Timing-safe comparison).
• Hardened Sessions: HTTPOnly, SameSite=Lax, and Secure-by-default cookies — the Secure flag is enabled automatically whenever the app is bound to a non-loopback address (LAN-exposed) or sits behind a TLS-terminating proxy (TRUST_PROXY=1), and only relaxed for the loopback-HTTP dev case. Override either way with SESSION_COOKIE_SECURE.
• XSS Protection: Strict HTML escaping and a robust Content Security Policy (CSP).
• CSRF Protection: An Origin/Referer same-origin allow-list guards every state-changing request (the JSON API's fetch() POST/PUT/PATCH/DELETE included — these can't carry a form token), backed by SameSite=Lax cookies and a single-use token on the login form. The allow-list is the same one used for Socket.IO (SOCKETIO_CORS_ORIGINS).
• No hardcoded secrets: the database password has no built-in default; the app fails fast unless it is configured (see Database).
• DoS Resilience: In-memory resource limits and Socket.IO rate limiting.
• Data Protection:
  • Windows: ACL hardening (icacls) for sensitive data.
  • Linux: Secure umask (077) and private directory permissions (0700).
• Least Privilege: Support for Linux capabilities (setcap).

Sensor-side configuration (CENTRAL_URL, DEVICE_ID, DEVICE_KEY, NETWORK_INTERFACE, and tuning knobs) is documented in sensor/sensor.env.example and sensor/README.md.

This repository follows current Python packaging practice with pyproject.toml, .python-version, and uv.lock.

uv sync
uv run python app.py
uv run ruff check .

Runtime dependencies are declared in pyproject.toml. uv.lock records resolved versions for reproducible environments. requirements.txt is kept as a legacy fallback for systems without uv.

Generated runtime files live in database/ and are ignored by Git where appropriate:

• backend_conf.json: selected packet-capture interface
• trusted_organisations.json: organization classification data
• datasets/*.mmdb: GeoIP datasets

Application state (live IPs, pinned IPs, settings, MAC cache, threat list) is stored in PostgreSQL — see Database (PostgreSQL).

The capture path (live sniffer, the forked internal scanner, and the FritzDump reader) all feed one cross-process priority queue, which a pool of worker threads drains into the database. If a single high-traffic device bursts faster than the workers can keep up, the queue fills and packets are dropped — and the dropped packet can be the very first one to a brand-new external IP (e.g. a freshly connected VPN server), so its point never appears on the globe. When that happens you'll see a throttled PacketQueue full: N packet(s) dropped warning in the log; raise the values below until it stops.

The two lanes are fair-scheduled: external traffic keeps priority, but the internal (LAN) lane is guaranteed a slice every few dequeues, so a sustained external flood (e.g. all traffic tunnelled to one VPN endpoint) can no longer starve a busy LAN device's packets. Note: LAN/private IPs are only drawn as their own nodes when Show local network is enabled in the overlay — otherwise only their external peers are shown.

The top bar shows a live read-out of the capture pipeline, refreshed every 5 s, so you can see at a glance whether everything is being processed:

• pkt/s — packets processed per second (throughput)
• processed — total processed this session
• dropped — packets dropped because the queue was full (turns red as soon as it is non-zero)
• queued — current backlog waiting in the queue
• OK / BUSY / OVERLOAD — an at-a-glance indicator; it goes OVERLOAD (pulsing red) while packets are actively being dropped or the queue is ≥ 90 % full. If you see this, raise PACKET_WORKERS / PACKET_QUEUE_MAX.

GDEF-L1NK/
├── app.py                           # Flask hub: capture, ingestion, devices, Socket.IO
├── capture_core.py                  # Shared packet classification (hub + sensor)
├── capture_sources.py               # Pcap-file capture sources (FritzDump tailing)
├── device_crypto.py                 # Shared sensor↔hub encrypted batch framing (Fernet)
├── sensor/                          # Standalone remote sensor worker (see sensor/README.md)
├── modules/FritzDump/               # FRITZ!Box pcap capture helper (own repo)
├── db.py                            # PostgreSQL connection-pool layer (fork-aware)
├── Dockerfile                       # App/sniffer container image
├── docker-compose.yml              # App + PostgreSQL stack
├── docker-compose.dev.yml          # Dev override: bind-mounts source (./run.sh dev)
├── .env.example                     # Sample environment for Docker Compose
├── run.sh                           # Docker Compose launcher (Linux)
├── smoke-test.sh                    # Smoke-test launcher
├── start.bat                        # Windows launcher
├── scripts/                         # Smoke tests and local helper scripts
│   ├── smoketest.py                 # Full app smoke test
│   ├── select_interface.py          # Interface selection helper
│   └── debug_interfaces.py          # Interface diagnostics helper
├── pyproject.toml                   # Project metadata and dependencies
├── uv.lock                          # Locked dependency graph
├── .python-version                  # Preferred Python runtime for uv
├── requirements.txt                 # Legacy pip fallback
├── database/                        # Generated configs, DB files, GeoIP datasets
├── static/                          # Frontend assets
├── templates/                       # Flask templates
└── media/images/                    # Documentation images

GDEF-L1NK is intended only for authorized defensive use:

• Monitor only networks and systems you own or are explicitly authorized to assess.
• Prefer the least-privilege capability setup over full root; only packet capture (CAP_NET_RAW) is required.
• Keep the default localhost bind unless you deliberately expose the UI on a trusted network.
• Follow local laws and organizational policy for packet capture and network monitoring.

The author assumes no responsibility for misuse.

This indicates that Npcap is missing or not running.

• Fix: Install Npcap from npcap.com.
• Crucial: Ensure "WinPcap API-compatible Mode" is checked during installation.

With the Docker stack, capture runs via the container's NET_RAW/NET_ADMIN capabilities — no host setcap is needed (and setcap is silently ignored on nosuid/ecryptfs mounts, a common cause of "Operation not permitted" when running outside Docker).

• Fix: Use ./run.sh start (Docker). If docker itself is permission-denied, add your user to the docker group or run sudo ./run.sh start.

Another process holds the port. Stop stray bare-metal instances (sudo pkill -f app.py) before ./run.sh start. The database publishes 55432 by default to avoid a system PostgreSQL on 5432 — change POSTGRES_PORT in .env if needed.

The dashboard is locked by default.

• Fix: Run ./run.sh token (or cat database/access_token.txt). Set a fixed ACCESS_TOKEN in .env to keep it stable across restarts.
• Windows: If you cannot see the file, ensure you ran start.bat as Administrator.

Set NETWORK_INTERFACE in .env to a real host interface (e.g. enp3s0, wlan0), then ./run.sh restart. List interfaces with python scripts/debug_interfaces.py or ip -br link.

A running list of known bugs and their fixes / workarounds.

A DNS-level blocker (AdGuard Home / Pi-hole — e.g. HaGeZi's Ultimate Blocklist) sinkholes the geolocation providers, so determining your own public IP and location fails. The app then falls back to DEFAULT_COORDS = [0, 0] ("Null Island" in the Gulf of Guinea — the middle of the sea). Foreign IPs still resolve correctly because they use the offline MaxMind DB (database/datasets/*.mmdb), which needs no DNS — only the self-lookup hits the network.

• Symptom in the log: Error at api.ipify (https): ... [Errno 111] Connection refused (the domain resolves to the blocker's own IP).
• Fix: Allowlist the two domains the self-lookup needs in your DNS blocker. In AdGuard Home → Filters → Custom filtering rules:

  @@||api.ipify.org^
  @@||ipinfo.io^


  Save, then reload the dashboard (no restart needed — index() re-fetches the geo data on every page load).

The dashboard template reads backend_config.interface_name, .adapter_description and .speed, but only the network_interface key is ever written to database/backend_conf.json (scripts/select_interface.py). These three fields therefore have no data source and render blank — unrelated to the geolocation issue above.

• Status: Cosmetic. The capture interface itself still works (it is read from network_interface / the NETWORK_INTERFACE env var).

A device that only ever connects over 2.4 GHz Wi-Fi produces no data on the globe, even though it is actively online. Its row in the DB stays frozen (last_seen stops advancing) while LAN and 5 GHz devices update in real time.

• Cause: FritzDump's home mode captures three FRITZ!Box interfaces — LAN (1-lan), Wi-Fi 5 GHz (4-133) and Wi-Fi 2.4 GHz. On some FRITZ!OS firmwares the logical 2.4 GHz AP interface (4-135, "AP2 (2.4 GHz)") accepts the capture but streams zero packets — its pcap stays at 24 bytes (just the global header). The actual 2.4 GHz client traffic appears on the raw radio interface 1-ath0 instead (delivered as Ethernet frames, which the reader already decodes). Capturing 4-135 therefore silently lost every 2.4 GHz-only device.
• Fix: home mode now captures 1-ath0 for the 2.4 GHz band by default. If your box numbers its interfaces differently, list them with ./run.sh test (inside modules/FritzDump) and override the whole set via the FRITZ_HOME_IFACES env var — a space-separated list of name:iface pairs:

  FRITZ_HOME_IFACES="lan:1-lan wifi_5ghz:4-133 wifi_24ghz:1-ath0"

• Diagnosing it yourself: the FritzDump status log now prints a per-interface parse breakdown, e.g. FritzDump status: 3 capture file(s), 135889 packet(s) parsed [lan_1-lan.pcap=78019, wifi_5ghz_4-133.pcap=52870, wifi_24ghz_1-ath0.pcap=...]. A capture file stuck at 0 (or absent from the list) is being silently dropped by the box — try a different interface ID for that band. Quick probe of a single interface:

  # inside the app container, from modules/FritzDump:
  timeout 10 python fritzdump.py --iface 1-ath0 --to dumps/probe.pcap; ls -l dumps/probe.pcap

  A file larger than 24 bytes means that interface actually carries traffic.

MIT. See LICENSE.

arn-c0de

GitHub: @arn-c0de
