ATmega32U4 Button Panel V1.0
Important
Private Learning Project: This is a personal experimental project focused on learning PCB design, hardware architecture, and iterative improvements.
Feedback is welcome! If you have suggestions for improvements or find issues, please feel free to:
- Reach out via private message or email.
- Start a topic in the Discussions tab.
- Open a Pull Request with your proposed changes.
Table of Contents
Overview

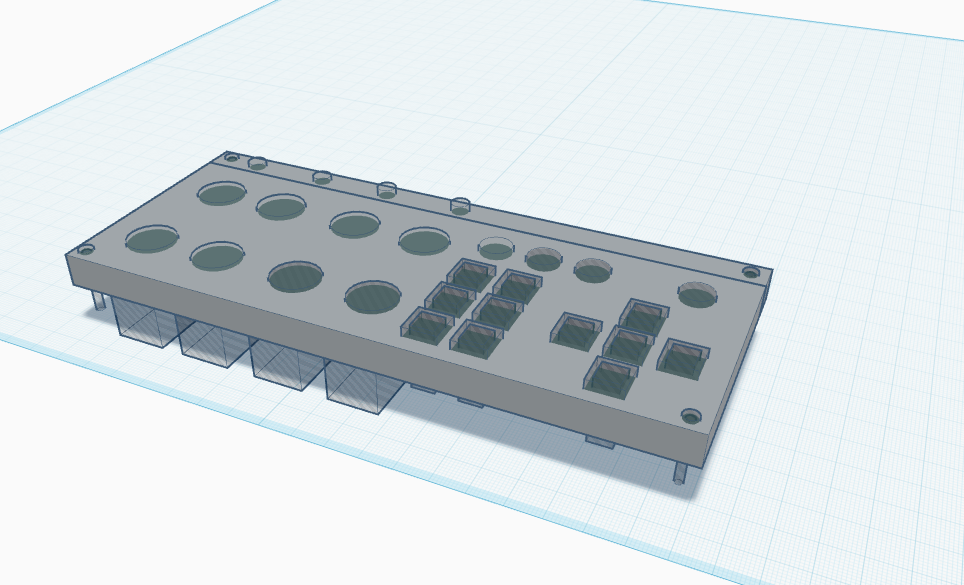

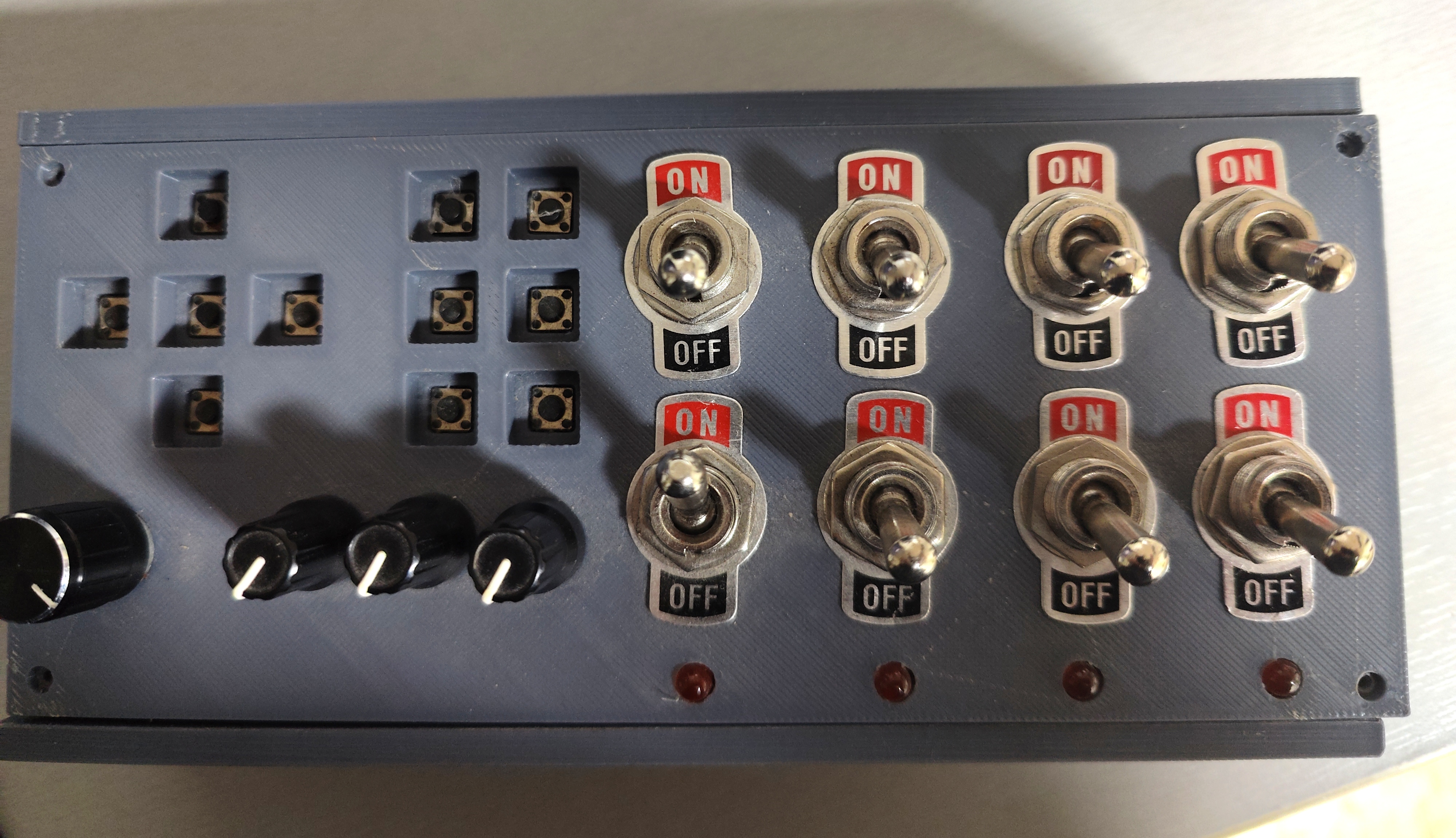

FlightPanel-01 is a custom input controller based on the ATmega32U4 (Arduino Pro Micro compatible). This project serves as a bridge for migrating an older design into a new, consolidated prototype. It features a high-density input matrix using a 16-channel multiplexer to support a variety of flight simulation controls.
Hardware Specifications
- MCU: ATmega32U4 (TQFP-44)
- Multiplexer: CD74HC4067M (16-Channel Analog Mux/Demux)
- Inputs:
- 8x Toggle Switches (via Mux)
- 11x Tactile Push Buttons (8 via Mux, 3 direct)
- 1x Rotary Encoder with Push Button (direct)
- 3x Potentiometers (Analog)
- Outputs:
- 4x Cathode-driven LEDs (PWM capable)
Project Status

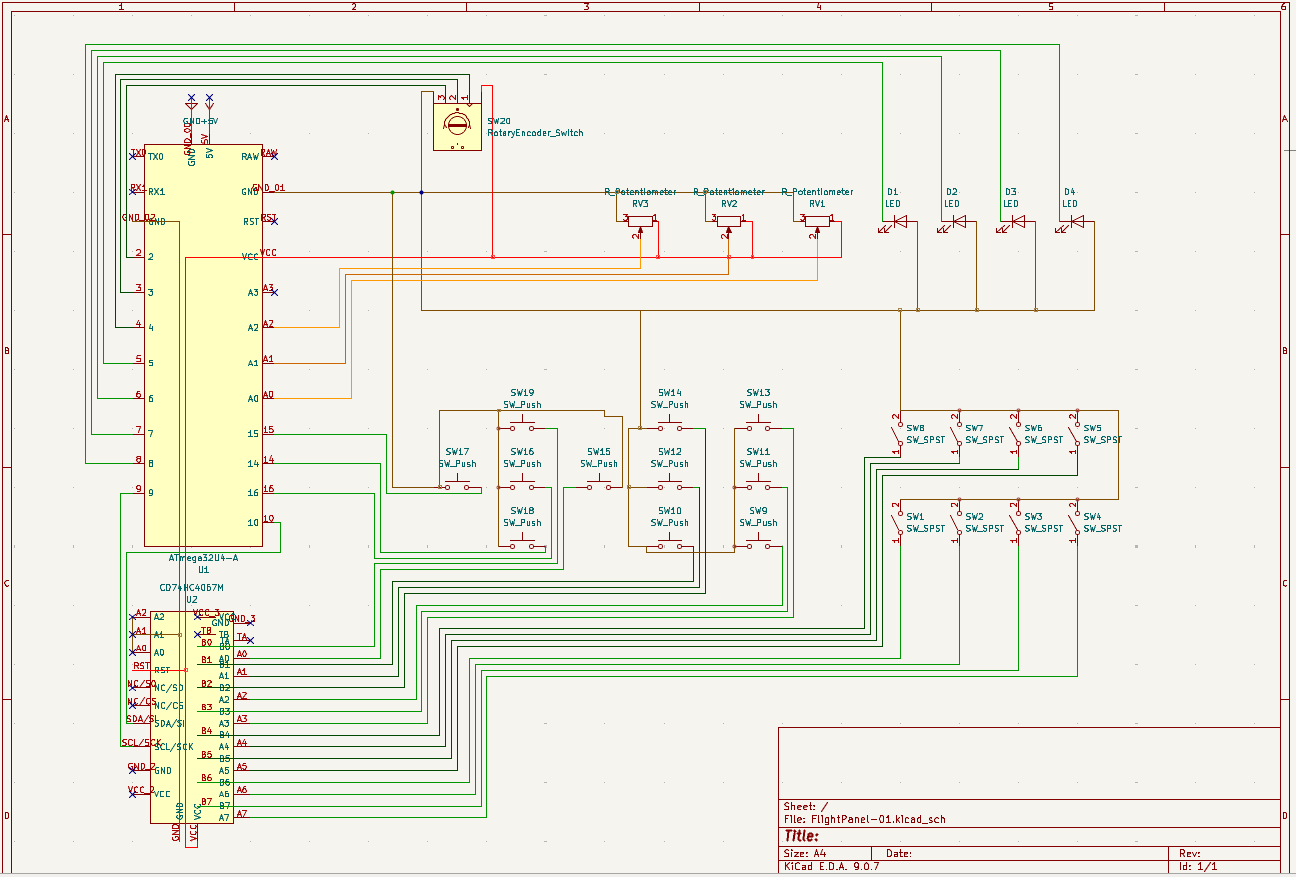

This repository is currently in the prototype and migration phase. The schematic and initial PCB layouts are being refined to ensure compatibility between legacy code and the new hardware architecture.
Technical Reference
For detailed pin mappings, multiplexer channel assignments, and component connections, please refer to the PINOUT_REFERENCE.md.
