A multi-secret HID keyboard emulator for Arduino Pro Micro Leonardo (ATmega32U4) that triggers passwords or other text payloads via USB keyboard emulation using button press sequences.

This project implements a sequence-based secret launcher on microcontroller hardware. Different combinations of short and long button presses unlock and transmit distinct payloads through USB keyboard emulation. Payloads can be simple passwords or multiline text such as ASCII-armored GPG private keys.

• Sequence-Based Activation: Multiple password combinations triggered by button press patterns
  • Short press (< 500ms) = 0 | Long press (≥ 500ms) = 1
• Encrypted Secret Storage:
  • Build-Time Encryption: AES-128-CBC with per-secret random IV
  • Runtime Decryption: Entries are decrypted directly from flash immediately before USB typing
• Multiline Secret Support: Supports escaped newlines and file-based import for ASCII-armored GPG private keys
• Brute-Force Counter: Persisted in EEPROM (weak — small PIN space, see Security Architecture)
• Memory Security: Barrier-protected buffer wiping and automatic crypto context zeroing
• LED Feedback: Real-time status indicators for user actions
• Configuration Management: Simple .env file configuration (auto-generated if missing)
• No Plaintext Storage: Secrets never appear in generated headers as plaintext

Notes:

• Buying in higher quantities or using leftover/recycled parts can drastically reduce cost.
• AliExpress and similar suppliers usually offer significantly lower prices, especially for microcontrollers and common components.
• Total cost for a single prototype: ~$6 - $13, but can drop below $5 per unit when sourcing smartly.

Pro Micro Pin    Component
─────────────    ─────────────────────────────────
GND              Button (first terminal)
Pin 9            Button (second terminal)
Pin 10           LED anode (+) via 220Ω - 3kΩ resistor
GND              LED cathode (-)

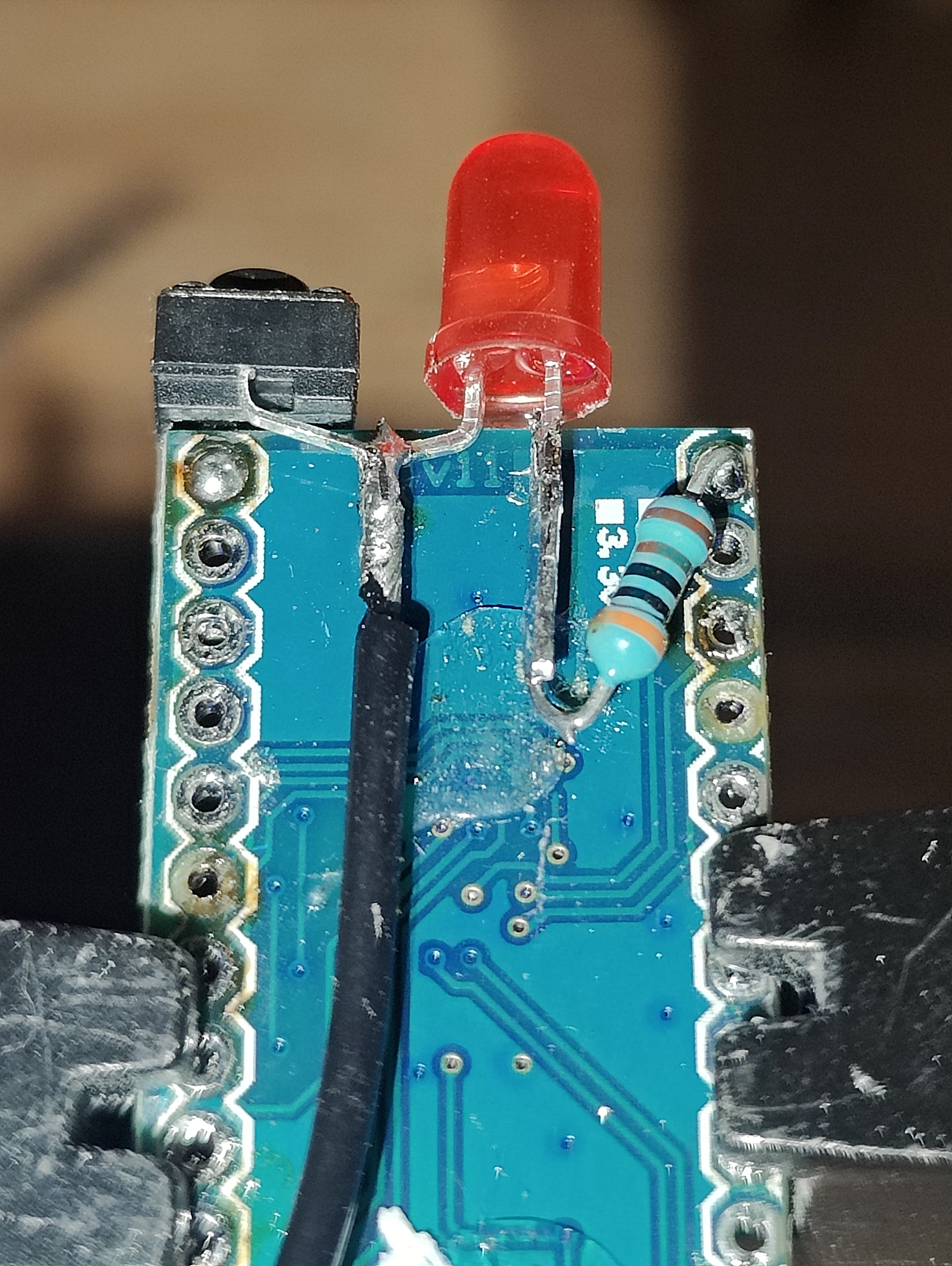

Note: This is an example image showing an older ATmega Pro Micro board — it may look a little rough. Newer boards may look different.

After soldering, secure exposed contacts with hot glue or UV resin, and fully enclose the board in heat-shrink tubing or a 3D-printed case.

Pin Configuration:

• Button input: Pin 9 (with internal pullup)
• LED output: Pin 10

• Python 3.6+ with pycryptodomex library
• arduino-cli (for building and flashing)
• SparkFun AVR board support (installed via arduino-cli)

1. Install Python Dependencies (Debian/Ubuntu/Kali):

sudo apt install python3-pycryptodomex

Or via pip (pinned):

pip3 install --user -r requirements.txt

Note: the import namespace is Cryptodome, provided by pycryptodomex — do not pip install Cryptodome (that bare name is not the canonical package).

2. Install arduino-cli:

Linux/macOS:

curl -fsSL https://raw.githubusercontent.com/arduino/arduino-cli/master/install.sh | sh

Or via package manager:

# Debian/Ubuntu
sudo apt install arduino-cli

# macOS
brew install arduino-cli

3. Clone Repository:

git clone https://github.com/arn-c0de/ESP-ProMicro-HidKey
cd ESP-ProMicro-HidKey

1. Create Configuration File:

cp .env.example .env
nano .env  # or your preferred editor

2. Generate AES Master Key:

python3 -c "import secrets; print(secrets.token_hex(16))"
# Output example: a7b3c9d2e8f41a6b5c7e9f2d4a8c1b3e

3. Configure .env File:

# AES-128 Master Key (32 hex characters = 16 bytes)
AES_MASTER_KEY=a7b3c9d2e8f41a6b5c7e9f2d4a8c1b3e

# Secret combinations
COMBINATION_COUNT=3

COMBINATION_0_SEQUENCE="0,0,1,0"
COMBINATION_0_TYPE="text"
COMBINATION_0_PASSWORD="admin123"

COMBINATION_1_SEQUENCE="1,0,0"
COMBINATION_1_TYPE="text"
COMBINATION_1_SECRET="user456"

COMBINATION_2_SEQUENCE="0,1,1,0,1"
COMBINATION_2_TYPE="gpg-private-key"
COMBINATION_2_GPG_PRIVATE_KEY_FILE="./secrets/private-message-key.asc"

Quoting Notes:

• If a secret contains a literal " character, wrap the whole value in single quotes.
• For very complex secrets, prefer COMBINATION_n_SECRET_FILE=./secrets/my-secret.txt

Sequence Format:

• 0 = Short button press (< 500ms)
• 1 = Long button press (≥ 500ms)
• Maximum sequence length: 20 presses
• Separate presses with commas

Example: Sequence "0,0,1,0" represents:

1. Short press
2. Short press
3. Long press
4. Short press

1. Connect Pro Micro via USB

2. Build and Upload:

./build.sh [port]

The build script automatically:

• Generates embedded_passwords.h from .env
• Compiles the sketch
• Uploads to the device

If you do not pass a port explicitly, build.sh lists the detected serial ports and lets you choose one interactively.

Custom Port Example:

./build.sh /dev/ttyACM1

🔁 Optional: Reset EEPROM before uploading The --reset-eeprom flag (short -r) clears the device's EEPROM state, including the persistent brute-force counter. This is useful if you want a clean state before flashing.

Examples:

# Reset EEPROM and upload after interactive port selection
./build.sh -r

# Reset EEPROM and upload to specific port
./build.sh /dev/ttyACM1 -r

Notes:

• The reset step is optional and safe for normal updates.
• It clears persistent EEPROM state such as the failed-attempt counter.

Upload Troubleshooting: If upload fails, enter bootloader mode:

1. Press the reset button on Pro Micro twice quickly
2. Run ./build.sh immediately (within 8 seconds)

After flashing:

1. Connect the Pro Micro to your target computer
2. Enter the configured button sequence
3. The password is automatically typed via USB keyboard emulation
4. 3-second timeout resets the sequence if no input is received

⚠️ Read this before trusting the device with anything valuable. The encryption here is obfuscation / defense-in-depth, not a security boundary. The AES master key is stored in plaintext flash right next to the ciphertext it protects, so anyone who can read the firmware image recovers every secret — including any GPG private key. This has been demonstrated: a flash dump decrypts itself with no .env and no EEPROM. Treat a device that has left your physical control as fully compromised.

• Secrets are encrypted with AES-128-CBC (PKCS#7 padding) using the master key from .env.
• A CSPRNG 16-byte IV is generated per secret and prepended to the ciphertext.
• Encrypted data is marked with flag 0x01 and embedded in embedded_passwords.h.
• The master key is embedded in PROGMEM (flash) in the same image.

• On a recognized button sequence, the matching entry is read from PROGMEM and decrypted in RAM using the embedded master key.
• The plaintext is typed over USB keyboard emulation into whatever window has focus, then the RAM buffer is wiped.

• Plaintext exists in RAM only during typing and is then overwritten with a secureWipe() helper that uses a compiler memory barrier so the wipe is not optimized away (single pass — SRAM has no remanence).
• AES context, key copy, and IV buffers are wiped on every exit path.
• Plaintext secrets are never written to the generated header.

• A failed-attempt counter is stored in one EEPROM byte (threshold 5, 30 s lockout) and a corrupted counter now fails closed (enters lockout).
• Limitations you must understand: each press encodes only 1 bit, so a 3–5 press sequence is only 8–32 possibilities. The lockout timer is not persisted across reboots, and an attacker can power-cycle or cut power before the recognition timeout to avoid the increment. The counter rate-limits but cannot make a short button PIN cryptographically strong.

• ✅ Casual inspection of the firmware image (strings)
• ✅ USB keyboard replay of a previously sniffed sequence (it's a press pattern, not a transmitted secret)
• ✅ Recovery of plaintext from RAM after power-off (decrypt-on-demand, wiped after)

• ❌ Flash extraction alone — recovers the key and all secrets (the device ships tools/reset_eeprom/dump_flash.sh + decode_flash.py, which do exactly this)
• ❌ Brute-force of the short button PIN (small keyspace, bypassable lockout)
• ❌ A device plugged into an attacker's host (it will type secrets on a correct sequence, with no host authentication or confirmation prompt)
• ❌ Hardware attacks (power/EM analysis, fault injection, glitching) — the ATmega32U4 has no countermeasures
• ❌ Physical coercion

⚠️ The ATmega32U4 has no secure element, no flash/EEPROM read protection, no secure boot. No software change can fully close the gaps above on this MCU.

Recommendations:

• Use only in physically secure environments; treat a stolen device as fully compromised.
• Avoid storing irreplaceable, long-lived secrets (especially GPG private keys) — they cannot be protected on this hardware.
• For real protection, derive the key from a typed passphrase and/or move to hardware with a secure element. See VULNERABILITY_ANALYSIS.md.
• Consider device as two-factor authentication complement (possession + sequence knowledge)
• For critical applications: implement additional tamper detection or destruction mechanisms

Problem: Sketch does not upload to device

Solutions:

1. Manually trigger bootloader: Press reset button twice quickly
2. Immediately run ./build.sh (within 8 seconds)
3. Verify serial port: ls /dev/ttyACM* or ls /dev/ttyUSB*
4. Grant user permissions: sudo usermod -a -G dialout $USER (then logout/login)

Problem: Build script reports compilation errors

Solutions:

1. Verify arduino-cli: arduino-cli version
2. Check Python version: python3 --version (requires 3.6+)
3. Validate .env exists: test -f .env || echo "Missing .env"
4. Check .env syntax (no spaces around =, proper quotes)

Solutions by Platform:

• Linux: Usually /dev/ttyACM0, /dev/ttyACM1, or /dev/ttyUSB0
• macOS: Use tab completion with /dev/cu.usbmodem*
• Windows: Check Device Manager; typically COM3 or COM4

List all ports:

# Linux
ls /dev/ttyUSB* /dev/ttyACM* 2>/dev/null

# macOS
ls /dev/cu.* 2>/dev/null

Solution:

cp .env.example .env
# Edit .env with your settings
nano .env

ESP-ProMicro-HidKey/
├── ESP-ProMicro-HidKey.ino      # Main Arduino sketch
├── aes.h                         # AES-128-CBC implementation
├── embedded_passwords.h          # Auto-generated encrypted secrets (gitignored)
├── generate_password_header.py   # Secret encryption generator
├── decode_flash.py               # Owner-only flash-dump decryptor (forensics)
├── rotate_aes_master_key.sh      # Rotate the AES master key in .env
├── build.sh                      # Build and flash automation script
├── build_config.h                # Compile-time configuration
├── requirements.txt              # Pinned Python build dependency
├── tools/reset_eeprom/           # EEPROM reset + flash dump helpers
├── .env                          # Your secret configuration (gitignored)
├── .env.example                  # Example configuration template
├── .gitignore                    # Git ignore rules
├── README.md                     # This file
├── CODE_REVIEW_2026.md           # Review findings + best-practice notes
├── VULNERABILITY_ANALYSIS.md     # Threat model and ranked findings
└── LICENSE                       # Project license

Edit timing constants in ESP-ProMicro-HidKey.ino:

#define LONG_PRESS_MS 500       // Long press threshold (milliseconds)
#define TIMEOUT_MS 3000         // Sequence timeout (milliseconds)
#define MAX_FAILED_ATTEMPTS 5   // Failed attempts before lockout
#define LOCKOUT_MS 30000        // Lockout duration (milliseconds)
#define MAX_SEQUENCE_LENGTH 20  // Maximum button presses per sequence

Change hardware pins in ESP-ProMicro-HidKey.ino:

#define LED_PIN 10       // LED output pin
#define BUTTON_PIN 9     // Button input pin

Without recompilation:

1. Update .env: increment COMBINATION_COUNT
2. Add new entries:

   COMBINATION_3_SEQUENCE="1,1,0"
   COMBINATION_3_TYPE="text"
   COMBINATION_3_PASSWORD="newpassword123"

3. Run ./build.sh to regenerate headers and upload

• Flash: ~9-10KB (sketch + encrypted secrets)
• SRAM: ~300 bytes global, plus temporary plaintext buffer during active output
• EEPROM: minimal persistent state for brute-force protection
• ATmega32U4 Specs: 32KB flash, 2.5KB SRAM, 1KB EEPROM

Encrypted entry in flash:

[Flag: 0x01] [IV: 16 bytes] [AES-CBC ciphertext: variable length]

Runtime Processing:

1. Only the active secret is decrypted into SRAM
2. Plaintext transmitted to USB
3. Buffer immediately cleared via a barrier-protected secureWipe()

Uses constant-time bitwise XOR accumulation to prevent timing attacks that could leak partial sequence matches through execution time measurements.

ASCII-armored GPG private keys can be imported from files or from inline .env values using escaped \n. During generation the input is normalized to Unix line endings, and GPG-key entries receive a trailing newline automatically so the typed output preserves the expected armor format.

1. Edit ESP-ProMicro-HidKey.ino for behavior changes
2. Recompile and upload: ./build.sh
3. No .env changes required for logic modifications

No code changes needed:

1. Update .env with new credentials or secret files
2. Run ./build.sh to regenerate encryption and upload

The build.sh script orchestrates:

1. Validates .env configuration
2. Runs generate_password_header.py to encrypt configured secrets
3. Compiles Arduino sketch with arduino-cli
4. Uploads firmware to connected device

The generate_password_header.py script:

• Reads and validates .env configuration
• Validates sequence format (0/1 only, max 20 presses)
• Generates cryptographically random IVs
• Encrypts each secret with AES-128-CBC
• Supports inline text, escaped multiline content, and file-backed GPG key input
• Marks entries with encryption flag 0x01
• Outputs C header file with embedded encrypted data
• Runs automatically during build

• Non-blocking LED state machine (allows button input during animations)
• Hardware button debouncing circuit
• Multiple button support
• Exponential backoff for brute-force attempts
• Display integration for visual feedback
• EEPROM wear leveling for counter persistence
• Modular code structure (separate compilation units)
• Alternative input methods (capacitive touch, etc.)

Please provide:

• Device specifications (Arduino Pro Micro variant, USB interface)
• Exact error messages and output
• .env configuration (without sensitive passwords)
• Operating system and relevant version numbers
• Steps to reproduce the issue

Contributions are welcome. Please:

1. Test thoroughly on actual hardware before submitting
2. Follow existing code style and conventions
3. Update documentation and comments
4. Consider security implications of changes
5. Add tests or validation where applicable

[Specify your project license here]

This project is provided as-is for educational and personal use. The authors and contributors assume no responsibility for:

• Security breaches or data exposure
• Device malfunction or hardware damage
• Loss of access to credentials or systems
• Misuse of the device

Use at your own risk. This device is not suitable for protecting critical authentication credentials or high-security applications. Treat a compromised or stolen device as fully compromised.

For more information about cryptographic implementations and security practices:

• NIST SP 800-38A: Block Cipher Modes (AES-CBC)

See VULNERABILITY_ANALYSIS.md for the threat model and ranked findings, and CODE_REVIEW_2026.md for the review notes.
